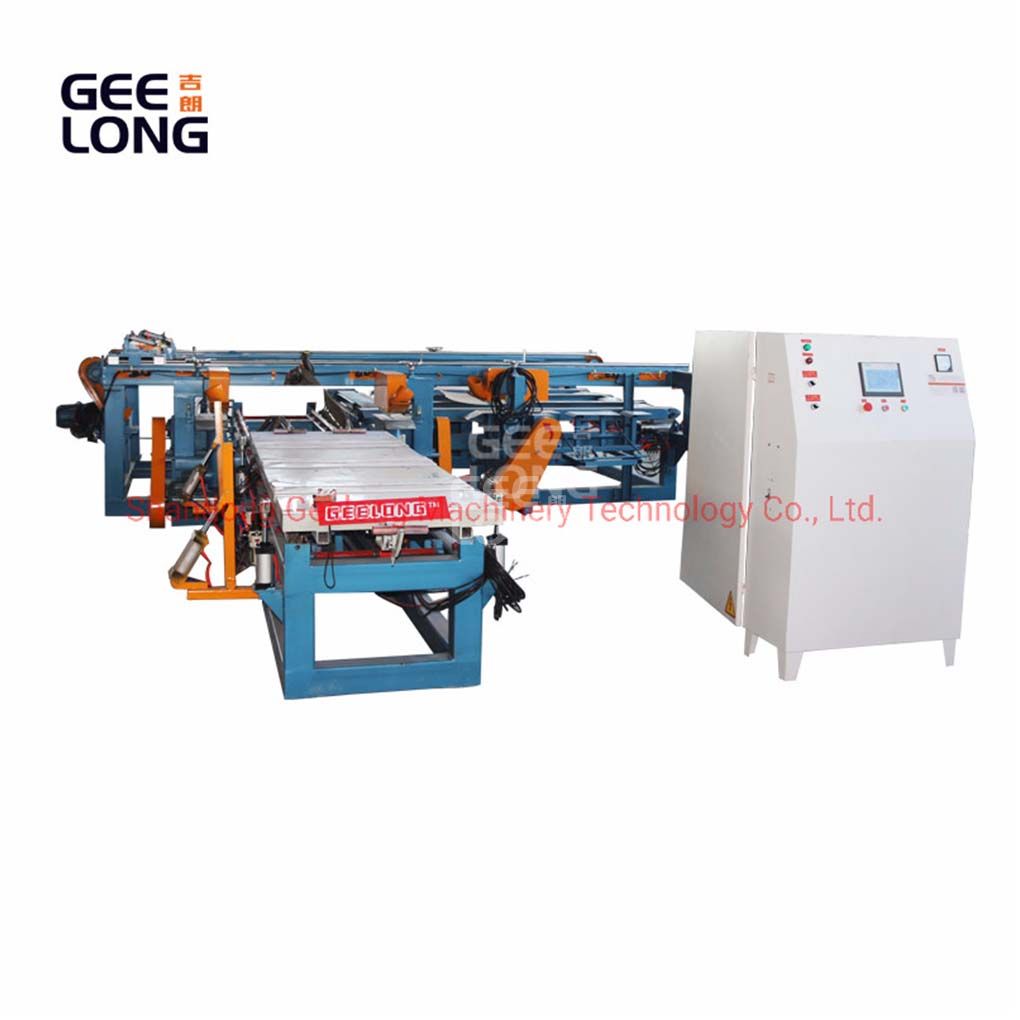

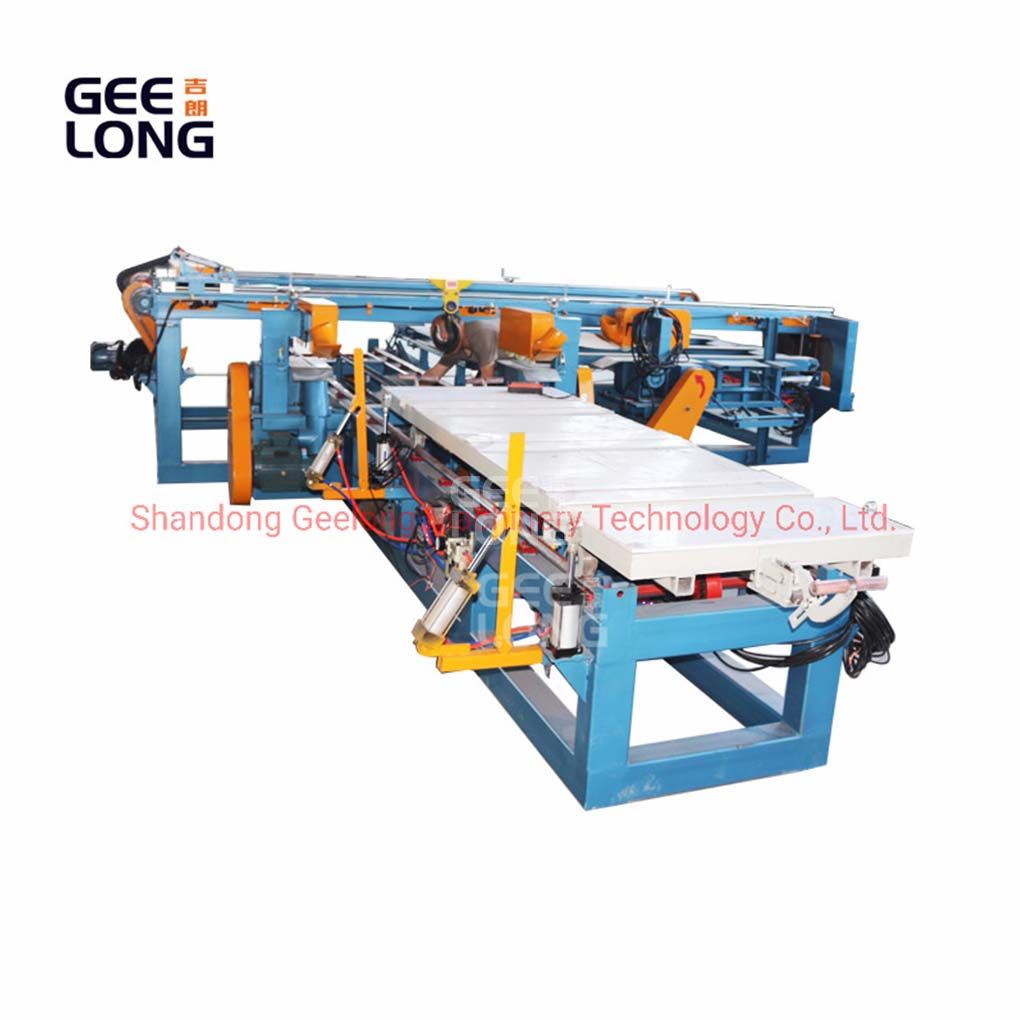

plywood edge cutting saw machine is important plywood machinery. It is used to saw cutting four end sides of plywood to get accurate plywood size.
plywood edge cutting saw machine is important plywood machinery. It is used to saw cutting four end sides of plywood to get accurate plywood size. Geelong plywood machinery factory has two types plywood edge cutting saw machine. one type is fixed size plywood edge cutting saw machine(3*6ft, 5*5ft and 4*8ft), one type is plywood edge cutting saw machine with adjustable size(3*6ft - 4*8ft).
plywood edge cutting saw machine can be customized according to client's requirement.
Features:
1, Using Siemens PLC system
2, Schneider brand electrical components
3, automatic plywood stacking system
4, laser system to fix the size
5, 6 saw blade(2bigs +4 smalls),second saw is with underline function, it is used to prevent the edges from not smooth.
| Cutting length | 2440-2660mm |
| Cutting width | 1220-1240mm |
| Cutting thickness | 10-60mm |
| Saw blade size | Φ180mm & Φ305mm |
| Vertical sawing speed | 30m-60m/min |
| Horizontal sawing speed | 30m-60m/min |
| Motor power | 38.2kw |
Machine working video:
