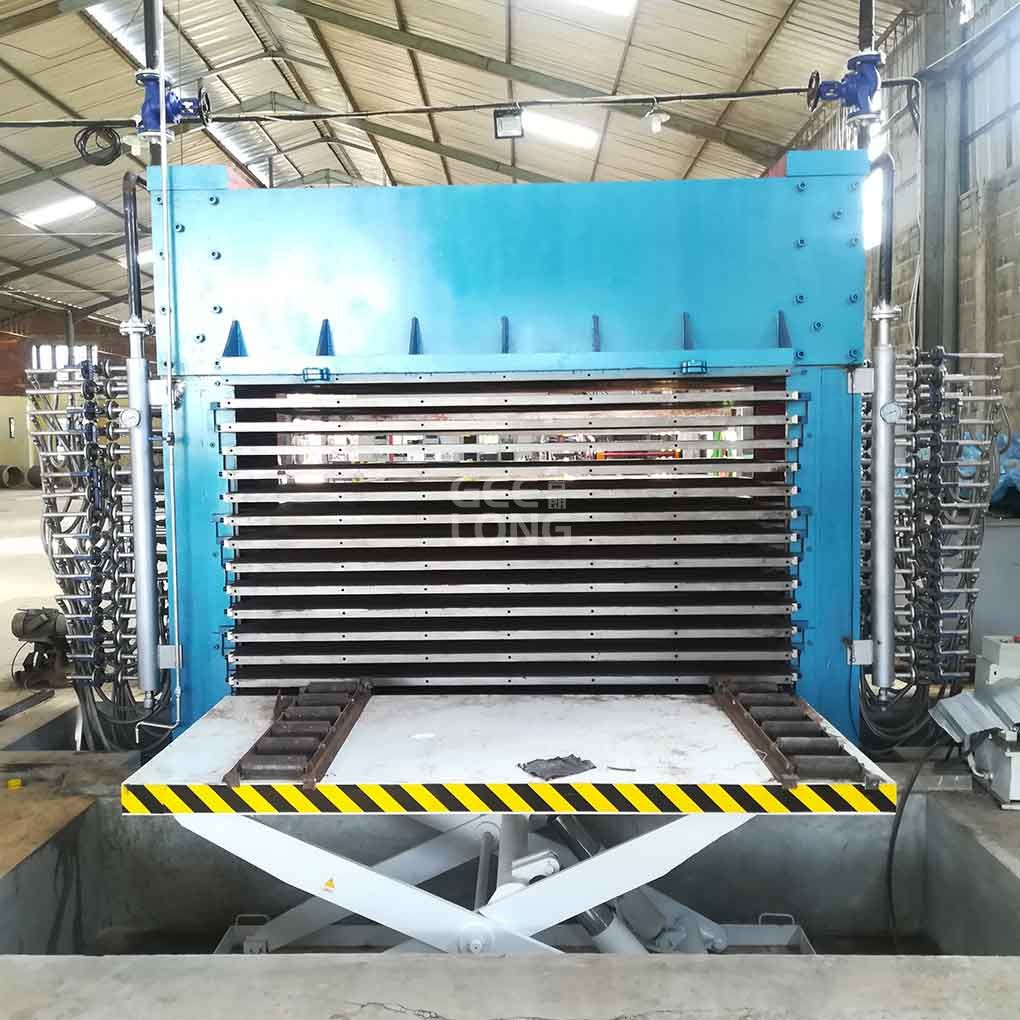

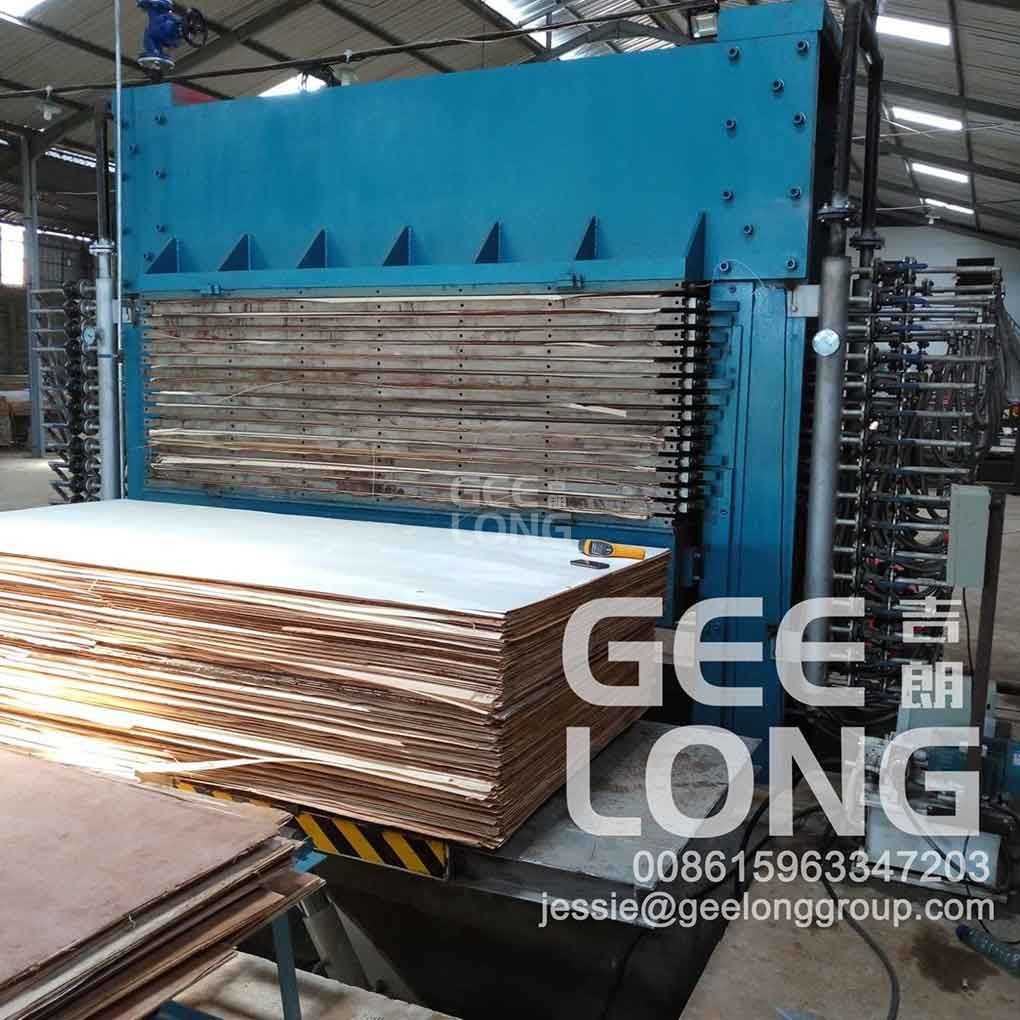

Plywood hot press machine is one of the main equipment in the plywood production process. It is the equipment for hot pressing of the board slab after the glue combination. The different types of plywood has different requirements on the performance off the press: ordinary plywood, plastic panel,wood laminated plastic board and ship plywood are required to increase the pressure in turn. It consists of three parts: the hot press main machine, the control drive part(hydraulic system and electric control system),and the heating system.
|normal pressure: 500T||Direction of boards inlet: transverse||Layers:15|
|Opening distance:70mm||Quantity of hot platens: 16||Size of hot platen: 1370x2700x42mm|
|Hot platen inside pipeline: two inlet and two outlet||Quantity of cylinders: 2pcs||Diameter of main cylinders:360mm|
|Working stroke of cylinders: 1050mm||Allowed pressure: <=25Mpa||Closing time of no-loading:11seconds|
|Flow of low pressure pump:280x1pcs||Allowed pressure: 3Mpa||Power motor: 15kwx1sets|
|Flow of high pressure pump: 25x1pcs||Flow of high pressure pump: 25x1pcs||Flow of high pressure pump: 25x1pcs|
|Power of motor: 5.5kwx1set||Allowed pressure: 25Mpa||Dimension: 3700x1370x4960mm|
|Thickness of up and down colume: 900mm||Controlling methods: automatic hydraulic stations||Main steel plate thickness: 35mm|
|Heating medium: thermal oil||Main steel plate thickness: 35mm||Total weight of this machine: 33T|
1. The main frame is cut by good quality no. 1 standard steel plate,gantry frame structue,strong rigidity and ensure high pressure,divided into welding frame type and bolts connected combined type.
2. Micro-computer control system is made by good quality hydraulic nit,fast press,accurate press,high efficiency.
3. The steam system is designed as a “double inlets and double outlets” arrangement to ensure even temperauture distribution.
4. Automatic electrical controlling,easy&reliable operation,automatic temperature module,and time controlling module,multi production process technology pressure keeping system,control and ensure high quality board.
5. The electricity components are imported brand Schneider and domestic famous brand CHNT.The motor can be Siemens.
Pressure,cylinder,hot platen size and so on can be customized to clients different requirement.
