The spindleless veneer peeling machine is used to peel the core veneer for the plywood making. it is used after the wood log debaker machine.
The spindleless veneer peeling machine is used to peel the core veneer for the plywood making. it is used after the wood log debaker machine. the core veneer thickness is 0.8-3.0mm. it is suitable different wood type and different wood size. its veneer peeling speed has 35m/min, 55m/min and 35-90m/min the high speed one. the veneer peeling machine modle size has 4ft, 8ft and 10ft. other size can be customized.
Feature:
1, suitable wood log diameter less than 600mm
2, mainly peeling core veneer thickness 0.8-3.0mm
3, DELTA PCL,CHNT electricity components
4, operation simply ,no need professionl operator.
5, the ordary machine model size is 4ft, 8ft and 10ft.other size need to be customized.

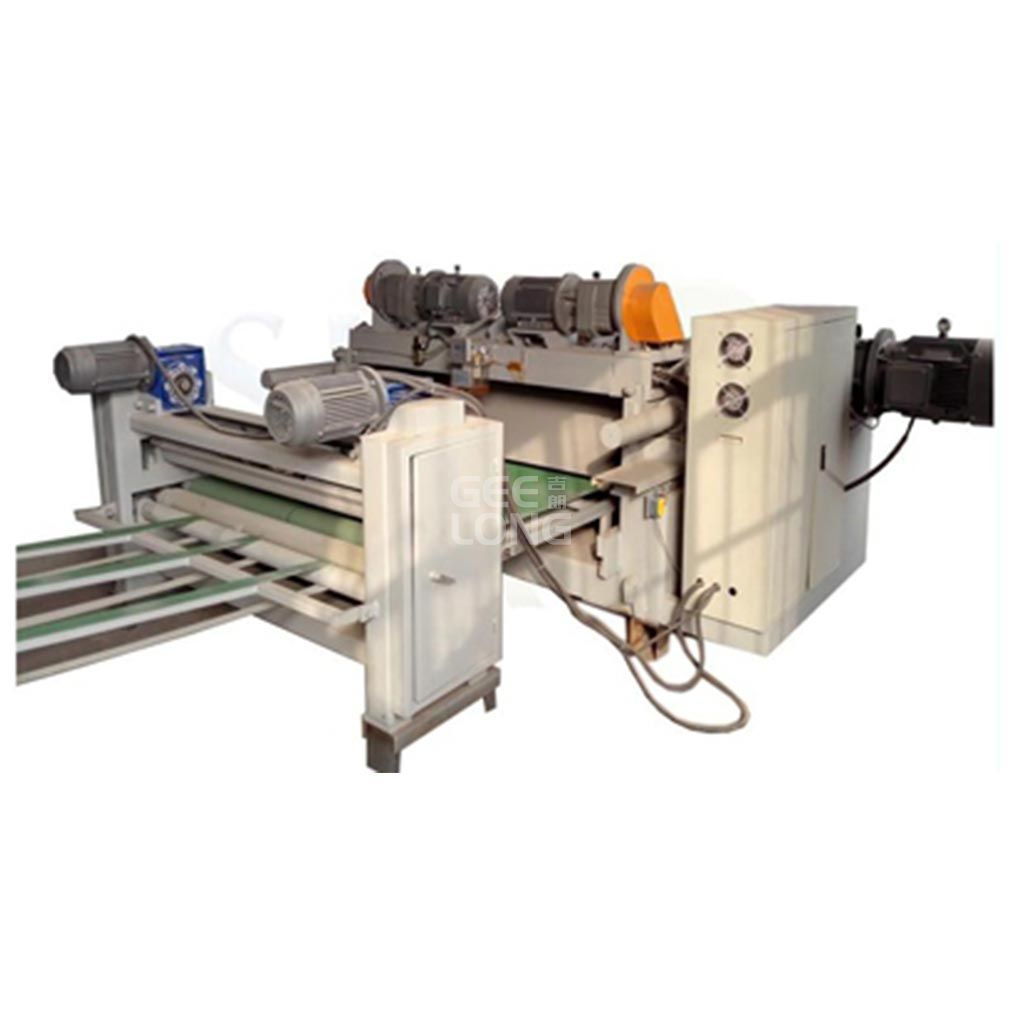

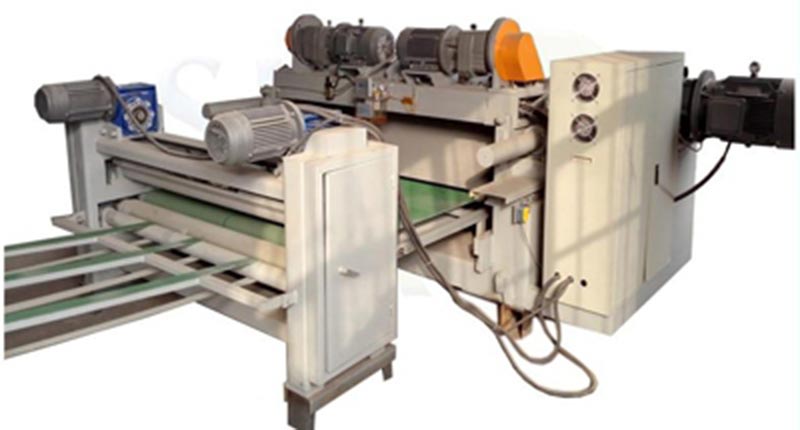

Technical parameters of 4 feet 55m/min Spindleless Veneer Lathe With Cutter Inside:
| Length of peeler log | 1000-1300mm |
| Diameter of peeler log | Dia.28-Dia.400mm |
| Length of blade | 1500mm |
| Thickness of veneer peeler | 0.8-3.6mm |
| Linear speed of host machine | 45mm |
| Size of double roller(D x L) | 120mmx1500mm |
| Size of single roller(D x L) | 120mmX1500mm |
| Power of feeding motor | 7.5kw servo motor |
| Power of single roller | 5.5kw x 2 |
| Power of double roller | 11kw |
| Power of cutter | 1.5kw |
| Power of rubber roller | 1.5kw |
| Power of conveyor | 1.5kw |
| Total power | 34kw |
| Lead Screw And Nut | Magnalium alloy China made |
| Total weight | 4800KGS |
| Overall dimension | 4200x2000x1380mm |

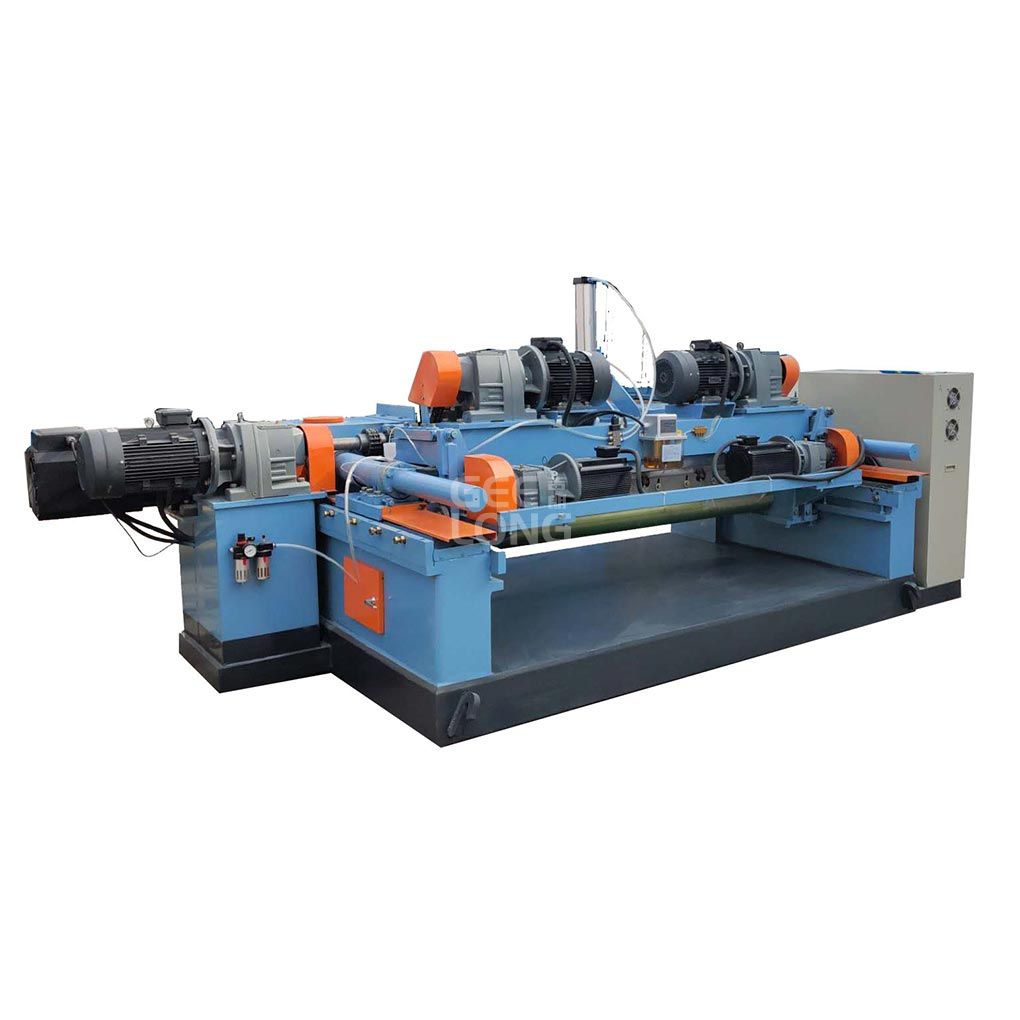

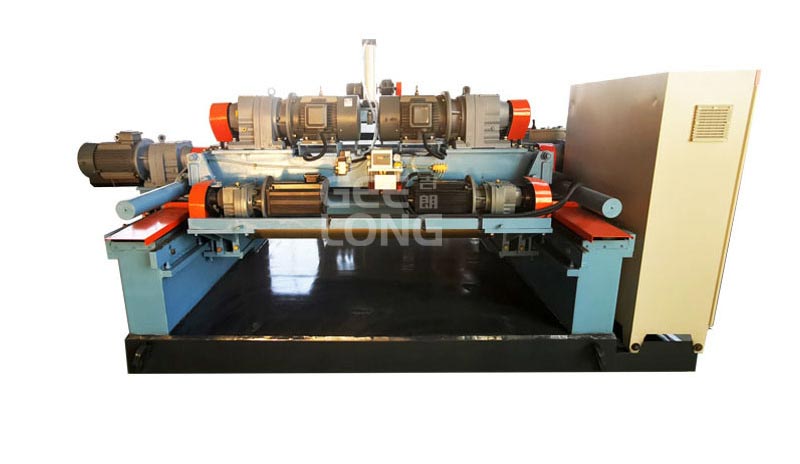

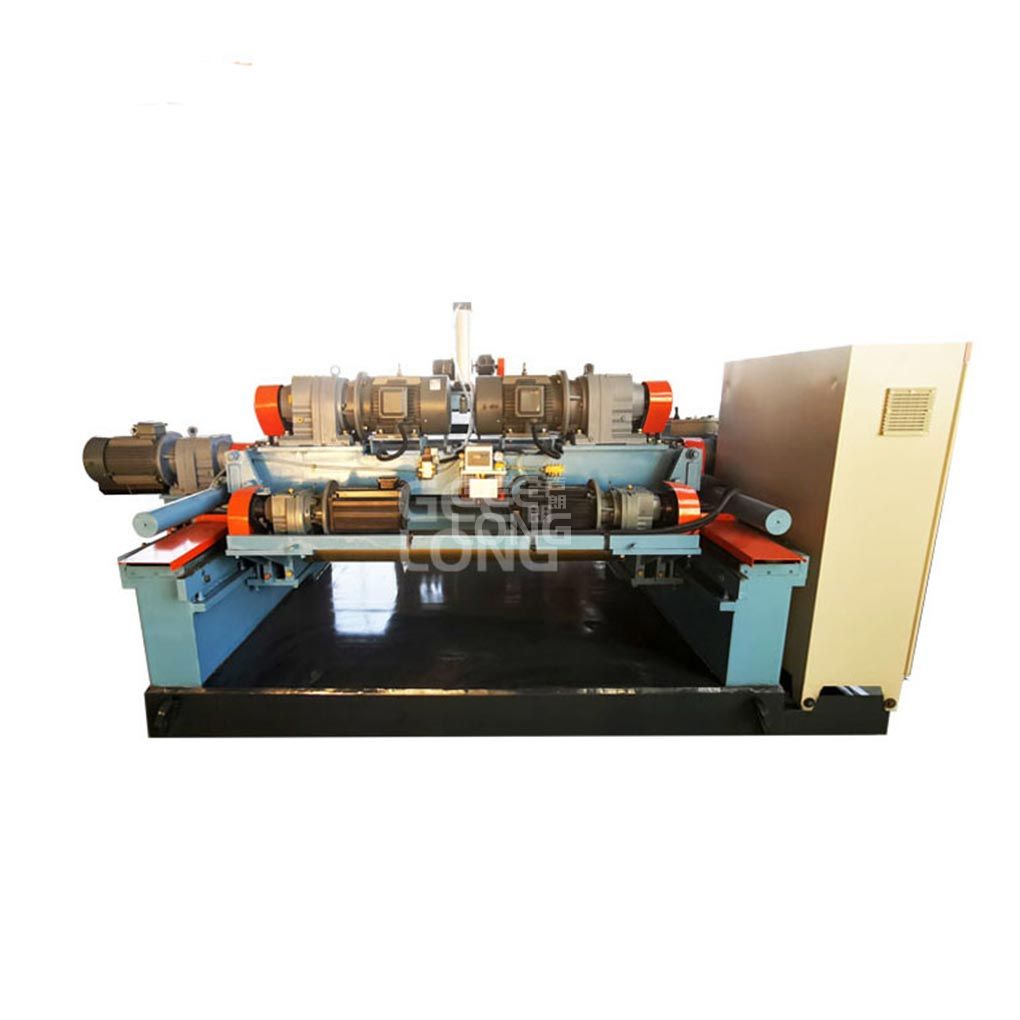

Technical parameters of 4feet 55m/min Spindle less veneer peeling machine with cutter outside:
| Length of peeler log | 1000-1300mm |
| Diameter of peeler log | Dia.28-Dia. 400mm |
| Length of blade | 1500mm |
| thickness of veneer peeler | 0.5-4mm |
| Diameter of driving roller | 120mm |
| Diameter of pressure roller | 120mm |
| Power of feeding motor | 7.5kw servo motor |
| Power of single roller | 4kwx2sets |
| Power of double roller | 5.5kwx2sets |
| Power of cutter | 2.2kw servo motor |
| Power of conveyor | 1.5kw |
| Total weight | 5200KGS |
| Overall dimension | 4500x1600x1400mm |
Machine working video:
